Think of a wire rope assembly like a chain; it is only as strong as its weakest link. In many cases, that potential weak point is the termination, where the rope is formed into a loop to connect to other hardware. A steel cable loop clamp is the component designed to ensure this connection is anything but weak. Its simple design, consisting of a U-bolt, a saddle, and two nuts, provides immense gripping force when installed correctly. But using the right size, type, and installation technique is what makes the difference between a temporary fix and a permanent, secure solution. This article breaks down the essentials so you can create a connection that is as strong as the cable itself.
Key Takeaways
- Select the right clamp for the job: Your project's safety starts with the right hardware. Always match the clamp size to your wire rope diameter, choose forged clips for heavy lifting, and select a material (like stainless steel for marine use or galvanized steel for general durability) that suits the environment.
- Installation details are critical for safety: A secure connection depends on proper technique. Always follow the "Never saddle a dead horse" rule by placing the clamp's saddle on the live, load-bearing end of the rope. Use the correct number of clamps and tighten the nuts to the recommended torque for a reliable hold.
- Regular inspection ensures long-term security: Hardware requires consistent maintenance to remain effective. Routinely check your clamps for any signs of corrosion, wear, or damage, and retighten the nuts after applying the first load. Replace any clamp that appears compromised to prevent failure.

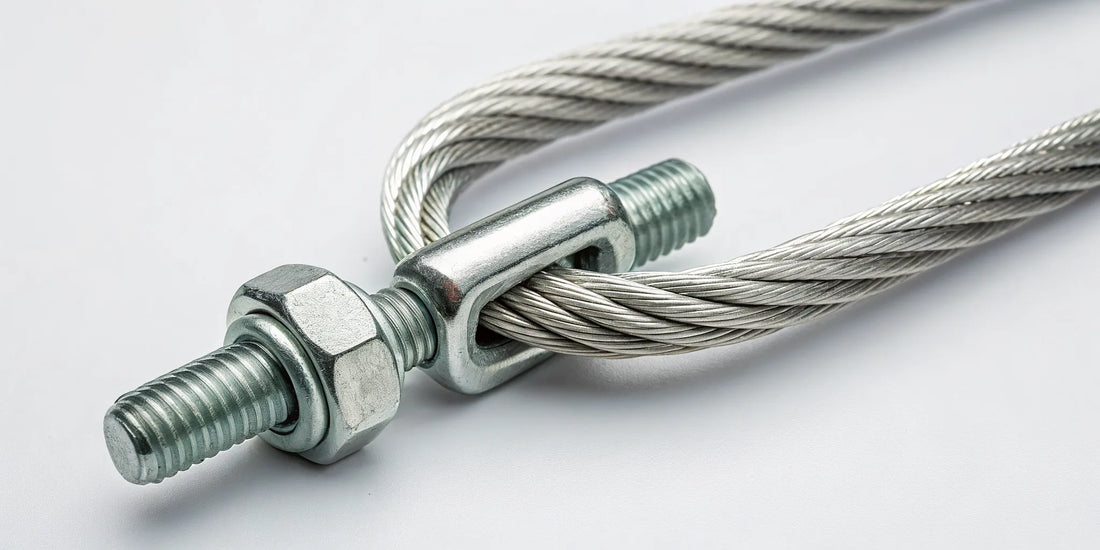

What Is a Steel Cable Loop Clamp?
Steel cable loop clamps are fundamental hardware for anyone working with wire rope. You might also hear them called wire rope clips or grips. Their main job is to create a secure loop, or an eye, at the end of a cable. This simple but strong connection is what prevents the rope from slipping, allowing it to safely manage heavy loads in construction, marine, and industrial settings. Think of them as the reliable handshake that joins your cable together, ensuring everything stays put.
Getting the setup right is key to their performance. From choosing the right type to installing it correctly, every step matters for safety and security. Let's look at how these essential tools work and what they're made of.
How Wire Rope Clips Work
The effectiveness of a wire rope clip depends on a proper fit and correct application. The first rule is to match the clip size to the diameter of your wire rope. An incorrectly sized clip won't provide a secure grip, which can lead to failure under load. For any task that involves lifting, it's critical to use forged clips. These are designed for strength and reliability in heavy-duty situations. Malleable clips, while available, are not built for lifting and should only be used for light-duty, non-critical applications like fencing.
Anatomy of a Clamp: U-Bolt, Saddle, and Nuts
A standard wire rope clip has three main parts: a U-shaped bolt, a base piece called a saddle, and two nuts. The saddle is the part that has a grooved or textured surface designed to grip the rope. When you install the clip, the saddle must always be placed on the live end of the rope, which is the part that will bear the load. The U-bolt goes on the dead end, or the tail of the rope. This rule is so important there's a common saying for it: "Never saddle a dead horse." Properly placing the saddle ensures the clip's full gripping power is on the working part of the cable, while protecting it from being crushed by the U-bolt. You can find a variety of high-quality security solutions for your projects.
Exploring Types of Steel Cable Loop Clamps
Not all steel cable clamps are made the same. The way a clamp is manufactured and the material it’s made from directly impact its strength and how you should use it. Picking the right type is essential for making sure your connection is both effective and safe, whether you're securing a load or putting up a fence. Understanding the differences between U-bolt, forged, and malleable clips will help you select the perfect hardware for your project. Each type is designed for a specific level of stress and application, so let's break down which one is right for your needs.
U-Bolt Clips: The All-Rounder
U-bolt clips are one of the most common types of wire rope clamps you’ll find, and for good reason. Think of them as the versatile all-rounder in your toolbox. They are perfectly suited for a wide range of general tasks that are not safety-critical, like creating a loop for a non-load-bearing guy wire or securing fencing. Their design provides a dependable grip for many everyday applications in construction and hardware. Because they are so adaptable, U-bolt clips are a reliable and popular choice for many rigging projects where overhead lifting isn't a factor.
Forged Clips: For Heavy-Duty Jobs
When you have a job that involves heavy lifting or is in a high-stress environment, forged clips are the only way to go. Forging is a process where steel is heated and hammered into shape, which creates an incredibly strong and durable final product. This superior strength makes forged clips the ideal choice for critical applications like overhead lifting, suspension, and any situation where the connection absolutely cannot fail. Their durability ensures they can stand up to tough conditions, giving you confidence and peace of mind when securing heavy or valuable equipment.
Malleable Clips: For Lighter Tasks
Malleable clips are a more economical option designed for light-duty applications. These clips are typically cast from molten iron, which makes them less expensive but also less strong than their forged counterparts. You should only use malleable clips for non-critical, static jobs where the rope won’t be under much stress. Examples include creating simple garden trellises or setting up temporary railings. It is extremely important to remember that malleable clips should never be used for any kind of lifting or overhead load, as their lower strength is not designed to handle that kind of pressure.
Common Materials for Cable Clamps
When you're choosing a cable clamp, the material it's made from is just as important as its size and type. The right material ensures your clamp will hold up against the elements and perform reliably for years. The environment where you'll use the clamp, whether it's on a boat deck or a construction site, will guide your decision. The two most common and dependable options you'll encounter are stainless steel and galvanized steel. Each has its own strengths, and understanding them will help you make the best choice for your project.
Stainless Steel: Resists Corrosion
Stainless steel is your go-to material for environments where rust is a major concern. Think marine applications, coastal areas with salty air, or any outdoor project exposed to harsh weather. This material contains chromium, which creates a passive layer that resists corrosion. You'll often see different grades, like Type 304 and Type 316. Type 316, often called marine-grade stainless steel, offers superior protection against chlorides found in saltwater. For any job near the ocean or involving chemicals, choosing a stainless steel clamp is a smart investment in longevity and safety.
Galvanized Steel: Built for Durability
Galvanized steel is another excellent choice, known for its strength and durability. This material is carbon steel that has been coated with a protective layer of zinc. The galvanization process creates a tough finish that guards against rust and corrosion, making it suitable for a wide range of outdoor and industrial applications. While it may not offer the same level of corrosion resistance as marine-grade stainless steel, it's a reliable and cost-effective option for general construction, fencing, and securing items in less extreme environments. You can find a variety of dependable security solutions made from durable materials to fit your specific needs.
Where to Use Steel Cable Clamps
Steel cable clamps are incredibly versatile tools found in a surprising number of places. Their main job is to securely fasten wire rope or create a loop at its end, but their application extends far beyond a single industry. From massive construction sites to simple backyard projects, these clamps provide a reliable connection you can count on. Understanding where they are used can help you see how one small piece of hardware plays a big role in safety and security across different environments.
Marine and Construction Rigging
In demanding fields like marine and construction, safety is everything. Steel cable clamps are essential for rigging operations where heavy loads are lifted, moved, and secured. They are used to create strong loops, or eyes, at the end of a wire rope. This ensures the rope can be attached to other components without slipping, which is critical for cranes, winches, and hoists. Whether you're securing cargo on a ship or lifting materials on a job site, these clamps provide the holding power needed to get the job done safely.
Industrial Machinery and Supports
Industrial settings often expose equipment to harsh conditions, including moisture and corrosive elements. This is where the material of your cable clamp really matters. High-quality stainless steel options offer excellent resistance to rust and wear, making them ideal for supporting machinery or securing components in factories, processing plants, and outdoor industrial sites. Their strength and durability ensure that supports and safety lines remain intact, even when exposed to saltwater spray or extreme weather over long periods. This reliability is key to maintaining operational safety and preventing equipment failure.
Fencing, Railings, and Everyday Securing
You don’t have to be on a construction site to find a use for steel cable clamps. They are also a practical choice for many everyday projects around your home or business. Clamps are commonly used to install and tension wire for railings, trellises, and fences. They are also great for securing smaller items, like bird control cables, where you need a tight and secure hold at the end of a line. Their simple design and strong grip make them a go-to solution for a variety of residential and commercial securing needs.
How to Choose the Right Cable Clamp
Choosing the right cable clamp is about ensuring the safety, security, and longevity of your project. When you are securing valuable equipment or building something meant to last, the small details make all the difference. A cable clamp might seem like a minor component, but it is the critical connection point that holds everything together. Selecting the wrong one can lead to connection failure, damaged equipment, or even serious safety hazards. This is why taking a moment to understand your needs is so important. It is the difference between a temporary fix and a permanent, reliable solution that gives you peace of mind.
Before you make a purchase, you need to consider a few key factors that will guide your decision. Think about the specific job the clamp needs to do. What is the diameter of the wire rope you are using? How much weight will the clamp need to support? What kind of environmental conditions will it face, like moisture or salt? Is there a chance it will be exposed to constant vibration from machinery? Answering these questions will help you narrow down your options from a wide array of choices to the one clamp that is perfectly suited for your application. This guide will walk you through each of these considerations, giving you the confidence to select a clamp that will perform correctly for years to come.
Match Clamp Size to Rope Diameter
The first rule of selecting a cable clamp is to always match the clamp size to your wire rope diameter. A clamp that is too large will not be able to properly grip the rope, which can lead to dangerous slippage under load. On the other hand, a clamp that is too small can crush and damage the wire rope's strands, weakening its overall strength and compromising its integrity. To get it right, simply measure the diameter of your wire rope and select a clamp specifically designed for that measurement. You can find this information stamped on the clamp itself or listed in the product specifications when you shop for hardware.
Check Load Capacity and Limits
Not all clamps are created equal, especially when it comes to the weight they can handle. It is critical to distinguish between clamps made for heavy lifting and those intended for lighter, non-lifting tasks. Forged clips are designed for overhead lifting and other critical, load-bearing applications where failure is not an option. Malleable clips are better suited for simple uses like fencing or temporary railings where the load is static and light. Always check the manufacturer's specified working load limit (WLL) to ensure the clamp can safely support your application's weight. This commitment to strength is part of our company heritage.
Select the Right Material for the Job
The environment where you will use the clamp plays a huge role in which material you should choose. For outdoor, marine, or coastal applications where moisture and salt are present, stainless steel is your best option. High-quality stainless steel grades like 304 and 316 offer excellent corrosion resistance, preventing rust that could compromise the clamp’s integrity over time. For general-purpose or industrial use where durability is key but extreme corrosion is not a primary concern, galvanized steel is a solid, cost-effective choice. The zinc coating on galvanized steel provides a protective barrier against the elements, ensuring a long service life for your project.
Consider Vibration for Sensitive Gear
If you are securing cables or pipes on machinery, vehicles, or any equipment that produces vibrations, a standard clamp may not be enough. Constant movement can cause nuts to loosen over time and may even wear down the cable’s outer sheath. In these situations, look for loop clamps that feature a cushioned lining. This cushion, often made of rubber or a similar polymer, absorbs vibrations and provides a tighter, more secure fit. It protects the supported materials from abrasion and ensures the connection remains tight, which is especially important for businesses that rely on properly functioning industrial equipment.
How to Install a Steel Cable Loop Clamp
Properly installing a steel cable loop clamp is essential for creating a secure and reliable connection. While the process is straightforward, each step requires careful attention to detail to ensure the loop holds strong under pressure. Getting it right prevents the wire rope from slipping or becoming damaged, which is critical for safety in any application, from marine rigging to securing heavy equipment. Following a consistent method ensures your connection is as strong as the materials you are using.
Before you begin, make sure you have the correct size and type of steel cable clamps for your wire rope. An incorrectly sized clamp can compromise the entire setup. This guide walks you through the four key steps for a successful installation, helping you create a safe and durable loop every time. We will cover everything from preparing the cable to the final inspection, so you can feel confident in your work.
Step 1: Prep the Cable and Place the First Clamp
First, create a loop by bending the wire rope back on itself. This will leave you with two parts of the rope: the "live end," which is the long, load-bearing section, and the "dead end," which is the short tail.
Position the first cable clamp about one base width from the very end of the dead end. The orientation is important here. Place the U-bolt section of the clamp over the dead end of the rope. The live end of the rope should rest securely in the saddle, which is the grooved base of the clamp. This initial placement sets the foundation for a strong loop termination.
Step 2: Follow the "Never Saddle a Dead Horse" Rule
There is a classic saying in rigging that makes it easy to remember the correct clamp orientation: "Never saddle a dead horse." This simple phrase is a critical safety reminder. The "saddle" part of the clamp must always be placed on the "live horse," which is the live, load-bearing end of the wire rope. The U-bolt, by contrast, goes on the "dead horse," or the dead end of the rope.
Following this rule is non-negotiable for a safe connection. Placing the saddle on the dead end would cause the U-bolt to press down on and crush the live end, significantly weakening its strength. This is one of the most important rigging safety principles to follow.
Step 3: Space and Secure Additional Clamps
The number of clamps you need depends on the diameter of your wire rope and the length of the cable run. As a general guideline, use at least two clamps for cable runs shorter than 100 feet and three clamps for runs longer than 100 feet. However, you should always consult the manufacturer's recommendations for your specific wire rope clips to determine the exact number and spacing required.
Place the second clamp as close to the loop as possible. If you are using more than two clamps, space the remaining ones evenly between the first and second clamps. This even distribution helps ensure the holding force is spread out correctly across the connection.
Step 4: Torque the Nuts and Inspect
Once all your clamps are in place, it is time to tighten the nuts. Tighten them evenly, alternating between the nuts on each clamp until you reach the recommended torque value. This prevents uneven pressure on the wire rope.
After applying the initial load to the rope, you will need to re-tighten the nuts, as the rope will likely settle and compress slightly. This final tightening is crucial for a secure hold. From there, make it a habit to inspect the clamps regularly for any signs of wear, damage, or slippage. Consistent checks are a key part of long-term safety and maintenance.
Common Installation Mistakes to Avoid
Installing a steel cable loop clamp might seem straightforward, but a few common missteps can compromise the safety and strength of your connection. Getting the details right is essential for ensuring your rigging, fencing, or support system holds up under pressure. By avoiding these frequent errors, you can create a secure and long-lasting termination that you can rely on. Let’s walk through what to watch out for so you can get the job done correctly the first time.
Using the Wrong Clamp Size or Type
One of the most critical mistakes is selecting a clamp that doesn't fit your wire rope. Each clamp is engineered for a specific rope diameter, and using the wrong size can lead to a weak grip and potential failure. A clamp that is too large won't secure the rope tightly enough, while one that is too small can crush and damage the wire strands. When you shop for hardware, always check the specifications. As experts in rigging equipment advise, you should always match the clip size to your wire rope diameter to ensure a proper and secure fit.
Incorrect Spacing Between Clamps
Proper spacing is another key factor for a strong installation. Placing clamps too close together or too far apart can create uneven tension on the wire rope, concentrating stress on a single point instead of distributing it. A good rule of thumb depends on the length of your cable run. For shorter applications, you might need fewer clamps than for longer ones. For example, some guidelines suggest that for cable runs shorter than 100 feet, you should use two cable clamps, while runs longer than 100 feet should use three. Following these spacing recommendations helps maintain the integrity of the entire assembly.
Over- or Under-Tightening the Nuts
The amount of torque you apply to the nuts is just as important as clamp size and spacing. If you over-tighten them, you risk damaging the wire rope's structure or even cracking the clamp's saddle. On the other hand, under-tightening is a recipe for slippage, as the rope can pull through the clamp when a load is applied. The goal is to tighten the nuts evenly to the manufacturer's recommended torque. A great professional practice is to apply some initial weight to the rope and then check the nuts again. You should tighten the nuts again if you notice any loosening.
Wire Rope Clip Safety and Maintenance
Proper installation is the first step, but consistent maintenance is what ensures your wire rope clips remain safe and effective over the long haul. Just like any other piece of hardware subjected to tension and the elements, these clamps require attention to prevent failure. Setting aside a little time for routine checks can save you from dealing with major equipment damage or safety incidents down the road. By making maintenance a priority, you can trust that your connections will hold strong when it matters most.
Inspect Regularly for Wear and Tear
Making a habit of inspecting your clips is the best way to catch problems before they start. You should inspect clips regularly for any signs of wear, corrosion, or damage. Look closely at the U-bolt threads to ensure they are not stripped and check the saddle for cracks or warping. Also, examine the wire rope itself near the clamp for any fraying or flattening, as this can indicate that the clamp is slipping or was overtightened. A quick visual check can help you spot potential issues and maintain a secure connection, giving you confidence in your setup.
Create a Simple Maintenance Checklist
A straightforward checklist can help you stay on top of wire rope clip maintenance without missing a step. It turns a complex task into a simple routine. The next time you check your equipment, run through these key points:
- Confirm you are using the correct number of clips for your rope’s diameter.
- Double-check that the saddle is on the live end of the rope, not the dead end.
- Ensure all nuts are tightened evenly to the recommended torque.
- Retighten the nuts after the rope has been under an initial load, as the rope may compress slightly.
- Look for any signs of slipping, corrosion, or damage on the clips and rope.
Know When to Replace Your Clamps
Knowing the signs of a failing clamp is critical for safety. If you spot any significant wear during your inspection, it’s time for a replacement. This includes deep rust, cracks in the saddle, or stripped threads on the U-bolt that prevent proper tightening. A bent U-bolt or a warped saddle are also clear indicators that the clamp’s integrity has been compromised and it can no longer handle its rated load. When in doubt, it’s always safer to replace the clamp. Using high-quality, durable hardware from the start, like our stainless steel clamps, can extend the life of your connections and give you greater peace of mind.
Find the Right Steel Cable Loop Clamps
Choosing the right hardware is one of the most important steps in any project. When it comes to securing wire rope, the quality of your clamps can make all the difference in safety and performance. Knowing what to look for helps you select a clamp that will hold up under pressure and last for years.
What Defines a High-Quality Clamp
High-quality clamps are defined by their material, construction, and strength. These essential tools, also known as wire rope grips, are designed to create a secure loop at the end of a cable, preventing it from slipping when bearing a load. The best clamps are made from strong, forged steel that can handle significant tension without failing. You should also look for protective finishes like galvanization or stainless steel. These coatings are vital for preventing rust and corrosion, especially if you’re using the clamps outdoors or in marine environments. Ultimately, a dependable clamp is one that has been tested to hold its designated load safely, giving you confidence in your connection.
Why Choose DoubleLock USA for Your Security Needs
When your project demands reliability, especially in tough environments, the right materials are non-negotiable. If you’re working near saltwater, in bad weather, or with harsh chemicals, stainless steel clamps are the best choice for preventing corrosion and ensuring a long service life. Our commitment at DoubleLock USA is to provide robust security solutions that stand up to the most demanding conditions. Whether you're securing straining wire for a bird control system, rigging equipment on a construction site, or handling a marine application, our hardware is built to perform. We focus on providing top-notch products that give you peace of mind, knowing your connections are secure and built to last.
Related Articles
- Chain and loops
- Hammerhead Chain Lock: Boat Cleat & Trailer
- The Ultimate Pintle Hitch Lock Buyer's Guide
Frequently Asked Questions
What is the "Never saddle a dead horse" rule and why is it so important? This is a classic saying that helps you remember how to orient the clamp correctly. The "saddle" is the grooved base of the clamp, and it must always be placed on the "live" end of the wire rope, which is the part that bears the load. The U-bolt goes on the "dead" end, or the short tail. Following this rule is critical because the U-bolt can crush and weaken the rope's strands, so you want to make sure that pressure is only applied to the non-load-bearing tail.
Can I use a cheaper malleable clip for a heavy job? No, you should never use malleable clips for any kind of heavy lifting or high-stress application. Malleable clips are made from cast iron and are only suitable for light-duty, static jobs like setting up a garden trellis or a temporary fence. For any situation involving overhead lifting or securing heavy loads, you must use forged clips. They are manufactured for superior strength and are the only safe option for critical tasks.
How do I choose the right size clamp for my wire rope? Matching the clamp size to your wire rope diameter is the first and most important step in selection. A clamp that is too large will not grip the rope securely, creating a risk of slippage. A clamp that is too small can pinch and damage the rope, compromising its strength. You can find the correct size stamped on the clamp itself or in the product details, so be sure to measure your rope's diameter and choose the corresponding clamp size.
When should I choose stainless steel over galvanized steel for my clamps? Your choice of material should be based on the environment where the clamp will be used. Stainless steel is the best option for marine applications, coastal areas, or anywhere the clamp will be exposed to moisture, salt, or other corrosive elements. For general construction and industrial use where conditions are less harsh, galvanized steel is a strong and cost-effective choice that still offers good protection against rust.
How many clamps should I use to secure my wire rope? The number of clamps you need depends on the diameter of your wire rope. As a general rule, you should use at least two or three clamps to ensure a secure hold. However, the most reliable answer will always come from the manufacturer's specifications for the specific clamps you are using. Always check their recommendations for the exact number and spacing required to safely support your intended load.
