The mortise lock has a reputation for being a heavy-duty, commercial-grade security device, which sometimes leads to a few myths. You might think it’s an outdated piece of technology or that it’s only suitable for businesses, not for a home. The reality is that a modern mortise lock combines a classic, time-tested design with advanced internal mechanisms that offer excellent protection against tampering. They are also highly customizable, allowing you to match the aesthetic of your home without compromising on security. Let’s clear up the common misconceptions and show you why this versatile system is a top choice for residential security.
Key Takeaways
- Strength Comes from an Integrated Design: A mortise lock is set inside a pocket within the door, not just attached to the surface. This integrated structure makes the entire assembly far more resistant to forced entry compared to standard locks.
- Factor in the Cost and Installation: These locks have a higher upfront cost due to their robust materials and complex engineering. The installation is also a precise job that requires cutting into the door, so hiring a professional is the best way to ensure it's done right.
- Choose Based on Your Door and Security Needs: Not every door is suitable for a mortise lock, so first confirm you have a solid-core door. Then, select a lock by looking at key features like its ANSI security grade and material quality to match your specific security goals.

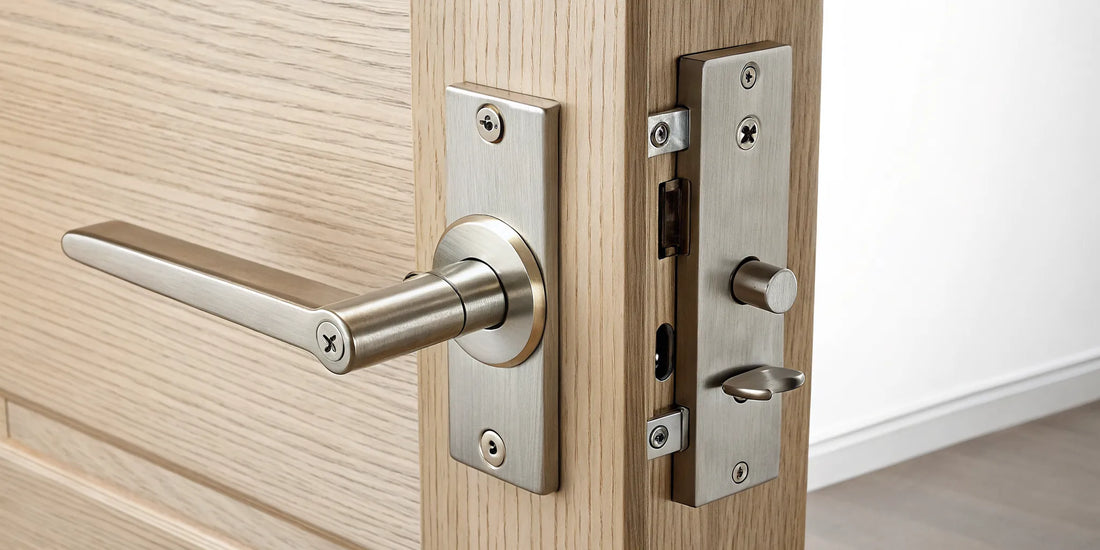

What Is a Mortise Lock?
A mortise lock gets its name from its installation method. To fit one, a pocket, or "mortise," is cut into the edge of a door. The lock body, a solid metal case containing the locking mechanism, slides neatly into this pocket. This is different from many other lock types that are simply attached to the door's surface. By integrating the lock into the door's structure, a mortise lock creates a much stronger and more secure connection. It’s a time-tested design that has been a hallmark of high-security applications for years, offering a level of protection that is hard to match. When you're looking for serious security, understanding this type of lock is a great place to start.
How Does a Mortise Lock Work?
A mortise lock operates as a complete system. It consists of a few key parts that work in unison. The lock body is the main component that sits inside the door's mortise. The lock trim includes the visible parts, like the doorknobs or levers you interact with. When you insert and turn the key in the keyed cylinder, it moves a bolt inside the lock body. This bolt extends into the strike plate, a metal plate that lines the doorframe, to securely lock the door. This design ensures all components are working together for maximum strength.
Mortise vs. Cylindrical Locks: What's the Difference?
The primary difference between these two lock types is their installation and inherent strength. A cylindrical lock, common in many residential settings, is installed by drilling a hole through the face of the door. In contrast, a mortise lock requires a deep pocket to be carved into the door's edge. This allows the entire lock case to be embedded within the door, making it far more resistant to being pried or forced open. While cylindrical locks are often less expensive, the robust, integrated design of a mortise lock provides superior security, making it a preferred choice for anyone prioritizing protection. For top-tier security, exploring high-quality locks is always a worthwhile investment.
The Anatomy of a Mortise Lock
To appreciate what makes a mortise lock so effective, it helps to understand its components. Unlike a standard cylindrical lock, a mortise lock is a system of parts working together inside your door. Each piece plays a specific role in providing security, durability, and function. Getting to know the anatomy of this lock will show you exactly where its strength comes from and what to look for when choosing the right one for your property.
The Lock Body
Think of the lock body as the heart of the entire system. This is the heavy metal case that contains all the critical internal mechanisms, including the latch, deadbolt, springs, and levers. The body is installed into a deep pocket, or mortise, cut into the edge of the door. This placement is key. By sitting inside the door itself rather than just on the surface, the lock body is protected from brute force attacks and tampering. It’s this robust, integrated design that forms the foundation of the lock’s superior security.
The Cylinder
The cylinder is the part of the lock where you insert the key. It acts as the control center, allowing you to operate the deadbolt. Mortise locks offer flexibility here, with different cylinders for different needs. For an exterior door, you’ll use a keyed cylinder that requires a key for entry. For an interior door, like a bathroom or office, you might opt for a thumb-turn cylinder on the inside for privacy and easy locking without a key. The quality of the cylinder is crucial for preventing lock picking and drilling, making it a vital component for overall security.
The Trim
The trim is the part of the lock you see and interact with every day. It includes the exterior hardware, such as the handles, levers, or knobs, as well as the decorative plates that sit against the door. While the trim is your chance to match the lock to your home’s aesthetic, it’s more than just for looks. It serves the functional purpose of operating the latch. High-quality trim is made from durable materials that can withstand daily use without wearing down, ensuring your lock operates smoothly for years to come.
The Strike Plate
The strike plate may seem like a minor piece, but it’s an essential security feature. This is the metal plate that is installed on the doorframe, right where the latch and deadbolt enter when the door is closed. Its job is to reinforce the doorjamb and provide a secure housing for the bolts. A strong lock is only as good as the frame it’s set in, and a heavy-duty strike plate prevents the doorframe from splitting under force. This small but mighty component is critical for ensuring your lock performs effectively when you need it most, reflecting a commitment to quality that has a long heritage.
Why Choose a Mortise Lock?
When you're serious about securing your property, a mortise lock is often the best choice. While it represents a more significant investment than a standard cylindrical lock, its benefits are substantial. From its tough construction to its flexible design, a
Choosing the right hardware is a critical step in protecting your assets. A mortise lock’s design integrates security directly into the door’s structure, offering a clear advantage over surface-mounted alternatives. This makes it a preferred option for front doors, commercial properties, and any entry point where security is the top priority. The combination of strength, longevity, and adaptability makes it a wise investment for anyone looking for true peace of mind.
Unbeatable Security
The primary reason to choose a mortise lock is its superior security. Unlike a standard cylindrical lock, which is installed by drilling a simple hole through the door, a mortise lock is set into a deep pocket, or mortise, cut into the edge of the door. This integrated design makes the entire structure much stronger and far more resistant to forced entry attempts like kicking or prying. Because the lock body is protected by the door itself, it creates a formidable barrier. Many security experts consider a mortise lock the gold standard for securing exterior doors for this very reason.
Built for Durability
Mortise locks are engineered for the long haul. They are typically constructed with heavier, more substantial components than their cylindrical counterparts, making them ideal for high-traffic areas and heavy commercial use. The internal mechanisms are designed to withstand constant operation without wearing out quickly. In fact, a well-made mortise lock is often so durable that it can easily outlast the door it’s installed on. This longevity means that while the initial cost might be higher, you are investing in a security solution that you will not need to replace for many years, offering excellent long-term value and consistent performance.
Versatile and Customizable
Beyond strength, mortise locks offer a surprising amount of flexibility. They are not a one-size-fits-all solution. You can often mix and match components, allowing you to use different brands of lock cylinders and accessories. This makes it simple to key your mortise lock alike with other security hardware on your property or to upgrade the cylinder for even higher security later on. The trim, which includes the handles, levers, and plates, also comes in a wide array of styles and finishes. This allows you to match your door’s hardware to your home or building’s specific aesthetic without compromising on security.
What Are the Downsides?
While mortise locks are a top-tier choice for security, they aren't the perfect solution for every door or budget. Making an informed decision means looking at the complete picture, and there are a few important factors to consider before you commit. Understanding these potential drawbacks will help you determine if a mortise lock is the right fit for your specific needs and situation. Think of it less as a list of cons and more as a checklist to ensure you’re making a confident and practical choice for your home or business.
The Upfront Cost
There’s no getting around it: mortise locks typically come with a higher price tag than standard cylindrical locks. This cost is a direct reflection of what you’re getting. The lock bodies are constructed from heavy, durable materials, and the internal mechanisms are more complex, all of which contribute to their superior strength and longevity. The price accounts for the quality of the components and the precision engineering that goes into creating a lock built to withstand serious force. When you choose a high-quality lock, you are investing in lasting security and peace of mind, backed by a company's commitment to quality craftsmanship.
A More Complex Installation
Installing a mortise lock is not a simple swap-out project. It requires cutting a deep, rectangular pocket, or mortise, into the edge of the door to house the lock body. This process demands precision, the right set of specialized tools like a mortising jig, and a good amount of skill. An improper cut can damage the door or compromise the lock's alignment and function. For this reason, DIY installation can be challenging for anyone without carpentry experience. To ensure the lock performs as it should and provides maximum security, we often recommend hiring a professional locksmith for the job.
Door Requirements
Not all doors are created equal, and a mortise lock needs a sturdy partner. Because the installation involves removing a significant portion of wood from the door's edge, it’s best suited for solid-core doors made of wood, composite, or metal. Installing a mortise lock on a hollow-core or particularly thin door can weaken its structural integrity, making it more vulnerable to being kicked in or broken. Before you purchase a lock, take a moment to assess your door. Make sure it’s thick and solid enough to support the mortise pocket without becoming compromised.
Key Features to Look For
When you start shopping for a mortise lock, you’ll notice the options can feel endless. To make the right choice for your property, it helps to know what separates a basic lock from a high-security one. Focusing on a few key features will ensure you get a lock that not only fits your door but also provides the durable security you need. From the materials used to the grade of the lock itself, these details are what make the difference in performance and peace of mind.
Understanding Security Grades
It’s helpful to know that locks are tested and graded for their strength and durability. The American National Standards Institute (ANSI) sorts them into three tiers. Grade 1 is the highest, built to withstand heavy use and resist attack, which is why it’s the standard for commercial and industrial buildings. A Grade 1 lock can handle millions of use cycles. For homes, Grade 2 offers excellent security, while Grade 3 provides basic residential protection. When you’re choosing a lock, checking its grade is a quick way to understand its security level and ensure it meets your needs, whether for a busy storefront or a quiet home.
Quality Materials and Anti-Drill Features
The materials a lock is made from are fundamental to its strength and lifespan. Look for mortise locks constructed from solid brass or stainless steel, as these metals are excellent at resisting corrosion and wear over time. Beyond the material of the body, consider its protective features. Many high-quality locks include anti-drill plates or hardened steel inserts within the cylinder. These components are designed to shatter or deflect a drill bit, stopping a common method of forced entry. When you’re comparing options, remember that the right materials matter just as much as the lock’s design, ensuring it stands up to both the elements and potential threats.
Pick Resistance and Cylinder Type
A lock’s ability to resist picking is another critical security feature. Lock picking is a skill that requires manipulating the pins inside a lock cylinder to open it without a key. High-security mortise locks are designed to make this extremely difficult. They often use security pins, like spool or mushroom pins, which catch and bind when a picking tool is used, preventing the lock from opening. You should also consider the cylinder type. A double-cylinder lock, which requires a key on both sides, offers more security but can be a safety hazard in an emergency. It’s important to understand lock picking prevention methods to choose a cylinder that offers the right balance of security and safety for your door.
Key Control Options
Controlling who can make copies of your keys is a vital aspect of security, especially for businesses, rental properties, or any situation where you need to manage access. This is where key control comes in. Some mortise locks come with restricted keyways, which are unique, patented designs that prevent keys from being duplicated at a standard hardware store. Copies can only be made by authorized locksmiths with proper identification. This simple feature provides a powerful layer of security by ensuring you always know exactly how many keys exist for your property. For larger buildings, a master key system can offer tiered access, adding another level of convenience and key control.
Reinforced Strike Plates
A lock is only as strong as the door and frame it’s attached to. The strike plate, the metal piece mounted on the door jamb where the lock’s bolt enters, is a critical point of security. A standard strike plate installed with short screws can easily fail when kicked or forced. A reinforced strike plate is made from heavy-gauge metal and secured with long, three-inch screws that anchor it deep into the wall stud behind the door frame. This simple upgrade dramatically increases the door’s resistance to being forced open. When you install a mortise lock, you should always use a reinforced strike plate to make sure your security system has no weak points.
Brand Reputation and Warranty
After you’ve considered the technical specifications, take a moment to look at the brand behind the lock. A company with a long-standing reputation for quality, like our team at DoubleLock USA, is more likely to produce a reliable and durable product. Established brands often provide better customer support and stand by their products with solid warranties. A warranty is a good indicator of the manufacturer's confidence in its lock’s performance. Look for a warranty of at least five years. When you’re making a long-term investment in your security, choosing a trusted brand provides an extra layer of assurance that you’re getting a product built to last.
Installing Your Lock: DIY or Pro?
Deciding whether to install a mortise lock yourself or hire a professional is a key consideration. Unlike simpler cylindrical locks, mortise locks require a more involved installation process that demands precision. Your choice depends on your comfort level with woodworking, the tools you have available, and your willingness to take on a project where mistakes can be costly. While a successful DIY installation can be rewarding, an incorrect one can compromise the lock's security and even damage your door permanently.
This decision isn't just about saving money. It's about ensuring the lock performs as intended for years to come. A professional locksmith has the experience and specialized equipment to get the job done efficiently and correctly, giving you peace of mind. However, if you are an experienced and confident DIYer, you might be able to handle the installation. Before you decide, let's look at what the process involves.
Why We Recommend a Professional
We generally recommend hiring a professional for mortise lock installation. The main reason is that the process requires cutting a deep, precise pocket, or mortise, into the edge of the door. This isn't a simple task. It demands specific tools and a high degree of accuracy to ensure the lock body fits perfectly. An improper cut can weaken the door's structure or cause the lock to bind, making it difficult to operate or insecure. A professional locksmith can complete this task correctly, guaranteeing the integrity of both your door and your new lock.
The Tools You'll Need for DIY
If you decide to proceed with a DIY installation, having the right tools is essential. While a skilled woodworker can cut a mortise with a drill and sharp chisels, professionals use a specialized tool called a mortising jig. This jig clamps to the door and guides the router or drill, ensuring the pocket is cut to the exact depth and dimensions required. In addition to the jig, you will need a power drill, a set of chisels, a tape measure, and a combination square to ensure everything is aligned perfectly before you make any cuts.
Avoiding Common Installation Mistakes
The most significant risk in a DIY installation is damaging the door itself. A slip of the chisel or a misaligned cut can create a permanent blemish or, worse, compromise the door's structural integrity. Another common issue is the misalignment of the lock components. The lock body, cylinder, and trim must all fit together perfectly through the door. Even the final step of attaching the exterior decorative parts, known as the trim, can be tricky for a novice. Taking precise measurements and double-checking them is critical to avoid these pitfalls.
How to Maintain Your Mortise Lock
Proper maintenance will ensure your mortise lock operates smoothly for decades. Periodically, you should check and tighten any loose screws on the trim and strike plate. To keep the internal mechanism working well, use a dry lubricant like graphite powder. Avoid using wet lubricants such as oil or WD-40, as they can attract dust and gum up the lock's moving parts over time. Simply puff a small amount of graphite into the keyway and the latch bolt opening, then operate the lock a few times to distribute it. This simple maintenance routine will help prevent sticking and wear.
Clearing Up Common Mortise Lock Myths
Mortise locks have a long history and a reputation for being heavy-duty, but this can sometimes lead to a few misunderstandings. If you've heard things that make you question whether a mortise lock is right for you, let's clear the air. We'll walk through some of the most common myths and separate the facts from fiction, so you can feel confident about your security choices.
Myth: They're Only for Commercial Buildings
It’s true that you’ll find mortise locks on the doors of many businesses and public buildings. Their strength makes them a logical choice for high-traffic areas. However, this has led to the myth that they are exclusively for commercial use. In reality, they are a standard in many European homes and are becoming a popular choice for residential properties across the US, especially for homeowners who prioritize security. Choosing a mortise lock for your home means bringing commercial-grade strength to the place that matters most, offering better protection for your family and valuables.
Myth: All Mortise Locks Are the Same
Another common misconception is that if you’ve seen one mortise lock, you’ve seen them all. This couldn’t be further from the truth. The mortise lock system is actually quite modular. Many models made for the US market allow you to use lock cylinders and accessories from different brands. This gives you incredible flexibility to customize both the look and the function. You can select a trim that matches your home’s decor while choosing a high-security cylinder that meets your specific safety requirements. This adaptability makes it easy to integrate a mortise lock into your existing hardware.
Myth: They're Outdated Technology
Because the basic design has been around for a long time, some people assume mortise locks are old-fashioned or outdated. While the concept of fitting a lock inside a door pocket is a classic, the technology inside has kept pace with modern security advancements. Today’s high-quality mortise locks often use sophisticated pin tumbler mechanisms, which are the standard for secure, pick-resistant locks. This combination of a time-tested, robust housing with a modern internal cylinder makes the mortise lock one of the most effective security solutions available, not a piece of history.
Myth: The Cost Isn't Worth It
There’s no denying that a mortise lock can have a higher upfront cost than a standard cylindrical lock. This leads some to believe the price isn't justified. However, it's more accurate to see it as an investment in long-term security and durability. These locks are engineered for heavy use with superior materials, meaning they last much longer and withstand abuse better than cheaper alternatives. When you consider the cost of replacing a lesser lock or the potential expense and stress of a break-in, the value becomes clear. You are paying for robust engineering and, ultimately, for lasting peace of mind.
How to Choose the Right Mortise Lock
Choosing a mortise lock is a significant decision for your property's security. With so many options available, it’s important to look beyond aesthetics and consider your specific needs. The right hardware should match your door, your security requirements, and your long-term expectations for durability. Thinking through a few key factors will help you select a mechanism that provides true peace of mind and lasting performance, ensuring you make an investment that protects what matters most. This process involves evaluating your door, understanding the differences between residential and commercial applications, and knowing where to find reliable information.
Assess Your Security Needs and Door Type
First, consider what you are trying to protect. A front door on a busy street has different security needs than an interior office door. Mortise locks are often considered the gold standard in door security because the body is installed inside a deep pocket, or mortise, cut into the door. This makes the entire assembly much stronger and more resistant to prying, kicking, and other forms of forced entry.
Your door itself is a critical part of the equation. A heavy-duty security device is only as strong as the door and frame it's attached to. Before you choose a product, inspect your door's material and thickness. Solid wood or metal doors are ideal candidates for a mortise installation, as they can accommodate the pocket without compromising their structural integrity.
Residential vs. Commercial Use
Mortise hardware is known for its heavy-duty construction, which is why it is a fixture in commercial buildings, schools, and hospitals. These environments demand high security and extreme durability to withstand constant use. However, their application is not limited to commercial properties. They are an excellent choice for residential homes, especially for owners who want a higher level of security for their front entry or home office.
While a commercial-grade device offers superior strength, it may also need to meet specific building codes or accessibility standards. For homeowners, the focus is typically on resistance to break-ins and overall longevity. Many brands offer a range of customizable options suitable for high-end homes, allowing you to get commercial-level security without a purely industrial look.
Finding Trustworthy Reviews
Once you have a clear idea of your needs, it’s time to research specific models and brands. Look for reviews from verified buyers on retailer websites like Lowe's or Lowe's, but also seek out feedback from professionals. Locksmiths and security contractors often share their opinions on forums or in trade publications, offering insights into long-term performance and ease of installation that you might not find elsewhere.
When reading reviews, pay attention to comments about the quality of the materials and the smoothness of the mechanism. A trustworthy brand will stand behind its products with a solid warranty and a clear commitment to quality. Learning about a company’s heritage and values can also give you confidence in your purchase, as it shows a long-term dedication to security and customer satisfaction.
Related Articles
Frequently Asked Questions
Is a mortise lock really necessary for my home, or is it overkill? It’s not overkill if security is your main goal. While their strength makes them a standard for businesses, many homeowners choose mortise locks to bring that same commercial-grade protection to their front door. It’s a practical choice for anyone who wants to invest in a higher level of security for their property and family.
Can I install a mortise lock on any type of door? Not exactly. Mortise locks require a solid, sturdy door to support them. Because the installation involves cutting a deep pocket into the door’s edge, they work best with solid-core doors made of wood, metal, or composite materials. Using one on a hollow-core door can weaken the door’s structure, which would undermine the lock’s security benefits.
Why is there such a big price difference between mortise locks and the cylindrical locks I see everywhere? The higher cost reflects superior engineering and materials. A mortise lock is a complex system built from heavier, more substantial components that are designed to withstand significant force and last for decades. You are paying for a robust internal mechanism and an integrated design that provides far greater security and durability, making it a long-term investment in your property’s safety.
What are the most important features to check for when I'm shopping for a mortise lock? To ensure you’re getting a high-quality lock, check its ANSI security rating; Grade 1 is the highest, and Grade 2 offers excellent residential security. Look for solid metal construction, like brass or stainless steel, and protective features like hardened steel pins that resist drilling. Finally, consider the manufacturer’s reputation and warranty, as this speaks to their confidence in the lock’s performance.
Do I have to use a key on both the inside and outside of the door? No, you have flexibility here. While a double-cylinder lock that requires a key on both sides is an option for maximum security, it’s not the only choice. Many people prefer a single-cylinder version that has a thumb-turn on the inside. This allows for quick and easy locking or unlocking from within your home, which can be more convenient and safer in an emergency.
